Lithium Primary Battery
SB-D02
We are the protagonist of the Smart Grid era with technical expertise and confidence.
VITZROCELL's Lithium primary batteries are widely used in the smart meter market and are currently exported to over 50 countries.
VITZROCELL's Lithium primary batteries are widely used in the smart meter market and are currently exported to over 50 countries.
주요특징
- High and stable operating voltage
- Low self-discharge rate
- (inferior to 1% yearly, when keeping at room temperature of 20°C)
- Bobbin type
- Non-flammable inorganic electrolyte
- GTM (Glass-to-Metal) hermetic structure
- UL Certification (File Number MH18384)
- RoHS
- No restriction in transporting

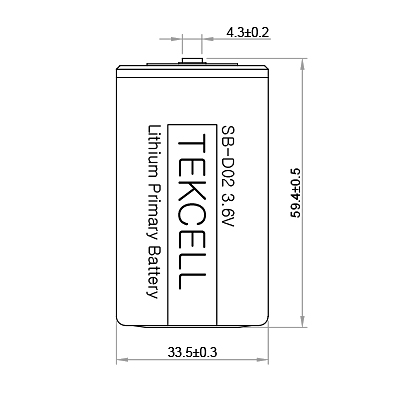

외형치수
사양
Nominal voltage | 3.6V |
Nominal capacity (at 6mA, 20℃, 2.0V cut off) | 19.0Ah |
Maximum recommended continuous current (Higher currents are possible, consult Vitzrocell) | 100mA |
Max. pulse discharge current | 250mA |
Weight | 100.0g |
Operating temperature range | -55~85℃ |
Max. pulse current/0.1 second pulses, drained every 2 min at + 20 °C from undischarged cells with 10 μA base current, yield voltage readings above 3.0V. The readings may vary according to the pulse characteristics, the temperature, and the cell's previous history. Fitting the cell with a capacitor may be recommended in severe conditions. Consult Vitzrocell.
참고사항
TC ST 2P 3P 3PW AX Other type available by request
