제품명

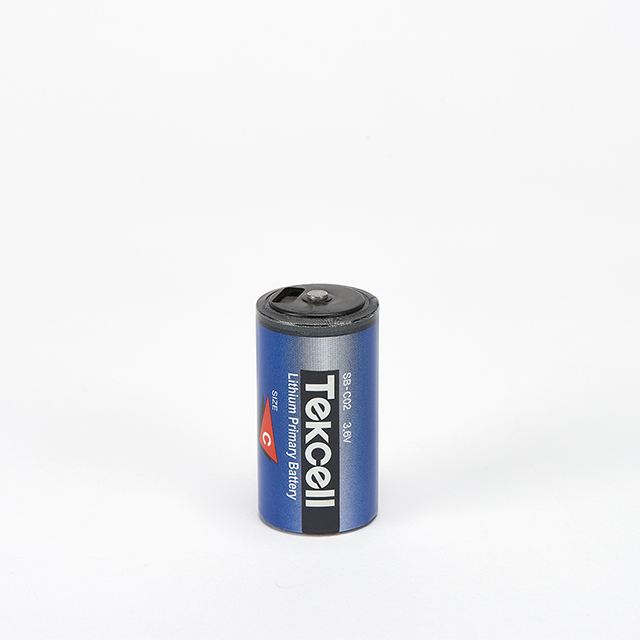

SB-C02

기술력과 자신감으로 스마트 그리드 시대의 주인공입니다.
비츠로셀의 리튬일차전지는 스마트미터 시장에서 널리 쓰이며 현재 50개국 이상에 제품을 수출하고 있습니다.
CONTACT US

Features

  • High and stable operating voltage
  • Low self-discharge rate
  • (inferior to 1% yearly, when keeping at room temperature of 20°C)
  • Bobbin type
  • Non-flammable inorganic electrolyte
  • GTM (Glass-to-Metal) hermetic structure
  • UL Certification (File Number MH18384)
  • RoHS
  • No restriction in transporting

dimensions

specification

Nominal voltage

3.6V

Nominal capacity

(at 4mA, 20℃, 2.0V cut off)

8.5Ah

Maximum recommended continuous current

(Higher currents are possible, consult Vitzrocell)

80mA

Max. pulse discharge current

180mA

Weight

51.0g

Operating temperature range

-55~85℃


Max. pulse current/0.1 second pulses, drained every 2 min at + 20 °C from undischarged cells with 10 μA base current, yield voltage readings above 3.0V. The readings may vary according to the pulse characteristics, the temperature, and the cell's previous history. Fitting the cell with a capacitor may be recommended in severe conditions. Consult Vitzrocell.

reference

TC ST 2P 3P 3PW AX Other type available by request
