Lithium Primary Battery

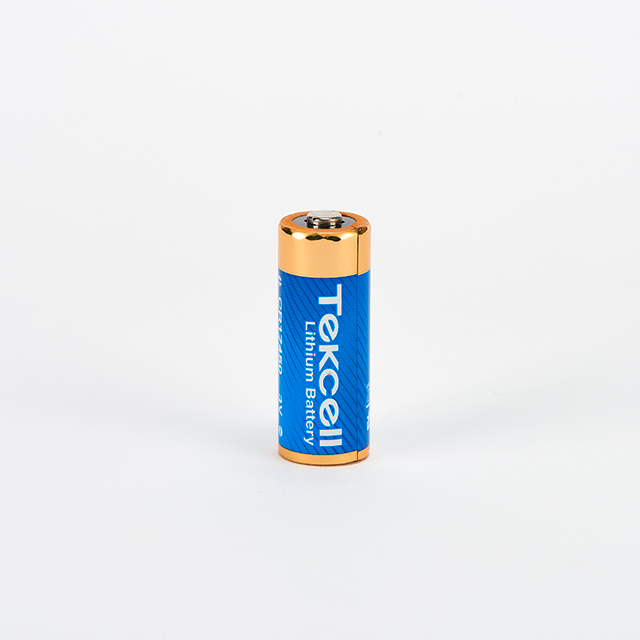

CR17450

We are the protagonist of the Smart Grid era with technical expertise and confidence.

VITZROCELL's Lithium primary batteries are widely used in the smart meter market and are currently exported to over 50 countries.
CONTACT US

Features

  • High and stable operating voltage
  • Low self-discharge rate (less than 2% after 1 year of storage at + 20°C)
  • UL recognized (File Number MH18384)
  • RoHS Compliance
  • Non-restricted for transport

dimensions

specification

Nominal voltage

3.0V

Nominal capacity

(at 10mA, 20℃, 2.0V cut off)

2400mAh

Maximum recommended continuous current

(Higher currents are possible, consult Vitzrocell)

1000mA

Max. pulse discharge current

3000mA

Weight

23.0g

Operating temperature range

-30~+60℃

reference

Fire, explosion and severe burn hazard. Do not recharge, crush, disassemble, heat above 212°F(100°C), incinerate, short circuit or expose

contents to water. Keep battery out of reach children and in original package until ready to use. Dispose of used batteries promptly.
