Lithium Primary Battery

CR2

We are the protagonist of the Smart Grid era with technical expertise and confidence.

VITZROCELL's Lithium primary batteries are widely used in the smart meter market and are currently exported to over 50 countries.
CONTACT US

Features

  • High and stable operating voltage
  • Low self-discharge rate (less than 2% after 1year of storage at + 20°C)
  • UL recognized (File Number MH18384)
  • RoHS Compliance
  • Non-restricted for transport

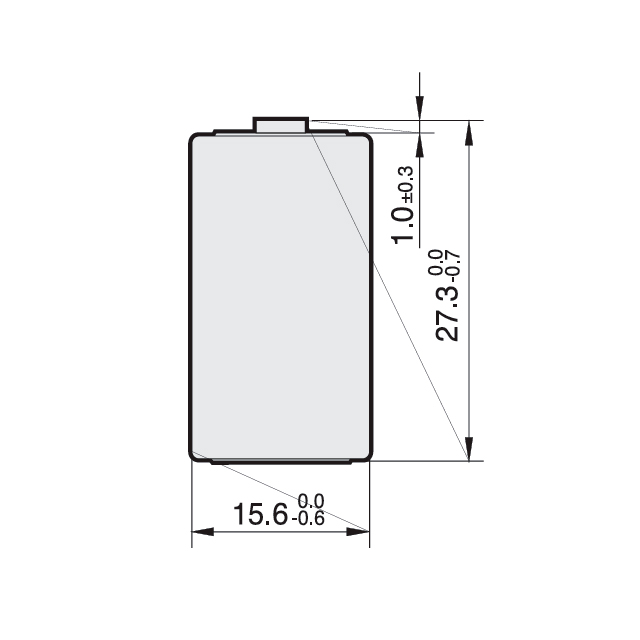

dimensions

specification

Nominal voltage

3.0V

Nominal capacity

(at 10mA, 20℃, 2.0V cut off)

850mAh

Maximum recommended continuous current

(Higher currents are possible, consult Vitzrocell)

800mA

Max. pulse discharge current

2,500mA

Weight

11.5g

Operating temperature range

-30~60℃

reference

Fire, explosion and severe burn hazard. Do not recharge, crush, disassemble, heat above 212°F(100°C), incinerate, short circuit or expose

contents to water. Keep battery out of reach children and in original package until ready to use. Dispose of used batteries promptly.
