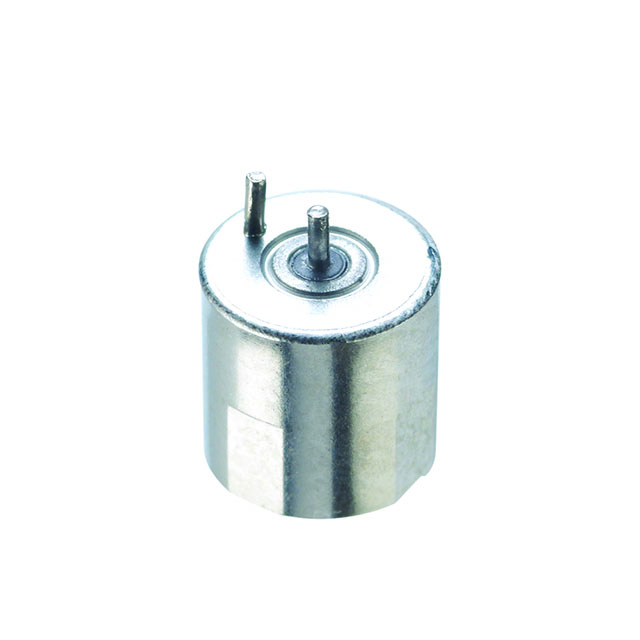

Military Battery

R05X05-01

The beginning of national defense and security, it has been recognized for its reliability and stability.

VITZROCELL's Military batteries meet stringent military performance requirements and are applied in defense systems and smart weapons.
CONTACT US

Features

  • Lithium based technology
  • High level of reliability
  • More than 15 years of shelf life
  • Wide operating temperature range(-43℃ ~ +63℃)
  • Customized design
  • Short activation time
  • No self-discharge

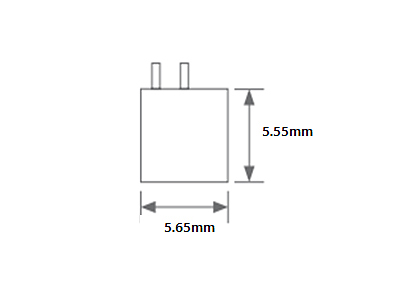

dimensions

specification

Stacking Structure

Single cell

Dimension (mm)

Ø5.6 × H5.5 (Subminiature Size)

Open Voltage (V)

3.6

Discharge Condition

6.8kΩ ~ 150kΩ

Activation Time (s)

≤ 1s, @6.8kΩ, 2.7V (at ≥ +20℃)

≤5s, @6.8kΩ, 2.7V (at -40℃)

Functional Time, Capacity

≥ 180s, @6.8kΩ, 2.7V

Weight (gram)
0.7
Shock Resistance

≤ 10,000G

Typical Shelf Life
Over 15years
Operating Temperature
-43℃ ~ +63℃
Storage Temperature
-54℃ ~ +71℃
Electrochemistry
Li/SOCl2
Activation Mechanism
Stab / Primer initiated
Typical Application
"155mm RAAMS
(Remote Anti-Armor Mine System)"
