Military Battery

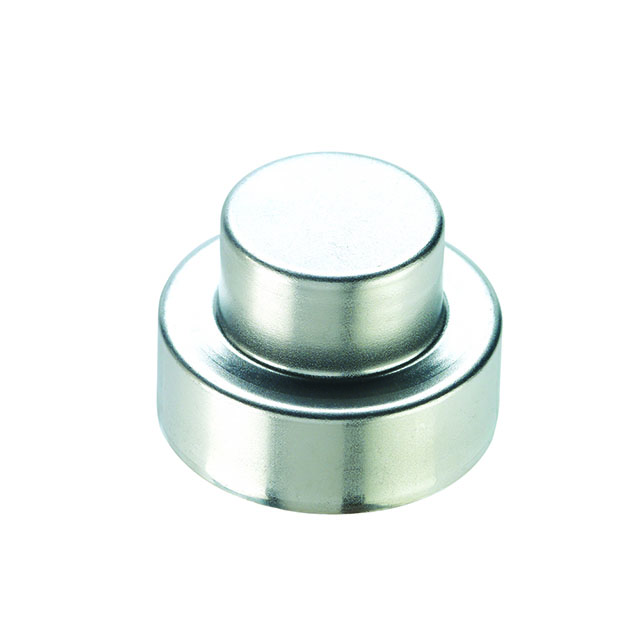

R32G15-10
The beginning of national defense and security, it has been recognized for its reliability and stability.
VITZROCELL's Military batteries meet stringent military performance requirements and are applied in defense systems and smart weapons.
VITZROCELL's Military batteries meet stringent military performance requirements and are applied in defense systems and smart weapons.
Features
- Lithium based technology
- High level of reliability
- More than 15 years of shelf life
- Wide operating temperature range(-43℃ ~ +63℃)
- Customized design
- Short activation time
- No self-discharge

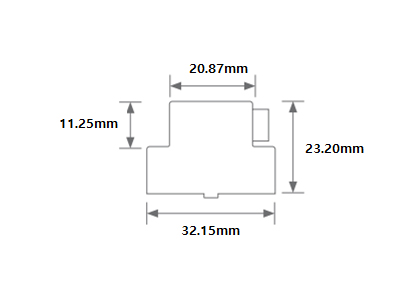

dimensions
specification
Stacking Structure | Serial type (2 ~ 10Serials) | ||||||||||||||||||||
Dimension (mm) | Ø32 × H23 (Medium Size) | ||||||||||||||||||||
Open Voltage (V) | 7V (2S) ~ 36V (10S) | ||||||||||||||||||||
Discharge Condition | ≤ 200mA | ||||||||||||||||||||
Activation Time (s) | ≤ 400ms, @100mA
| ||||||||||||||||||||
Functional Time, Capacity | ≥ 200s, @100mA
| ||||||||||||||||||||
Weight (gram) | ≤ 43 | ||||||||||||||||||||
Activation Acceleration (G) | ≥ 1,500G | ||||||||||||||||||||
Rotation Speed (Max) | 30,000rpm | ||||||||||||||||||||
Typical Shelf Life | Over 15years | ||||||||||||||||||||
Operating Temperature | -43℃ ~ +63℃ | ||||||||||||||||||||
Storage Temperature | -54℃ ~ +71℃ | ||||||||||||||||||||
Electrochemistry | Li/SOCl2 | ||||||||||||||||||||
Activation Mechanism | Gun launch | ||||||||||||||||||||
Typical Application | Naval/Artillery Gun (76,127,105,155mm Shell) |
