제품명

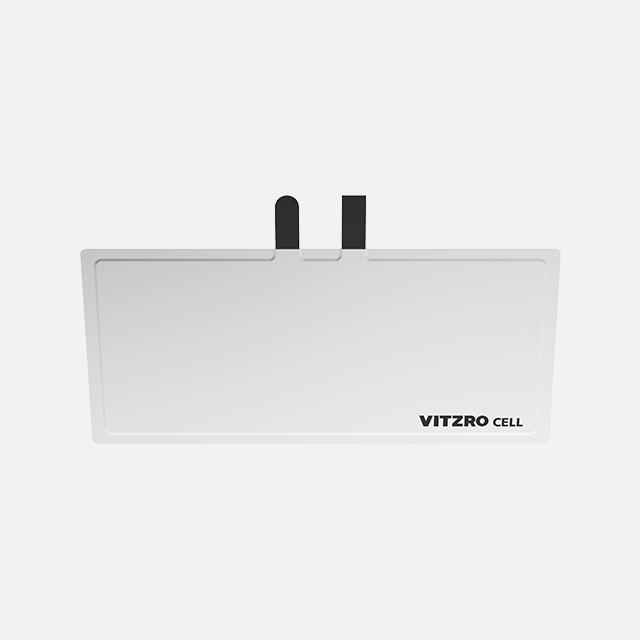

Facial Mask (Thin Film Battery)

CF30P8035

We lead the latest technology trends with innovations in design and thickness.

VITZROCELL's Thin film batteries are thin and flexible sheet-type batteries with various shapes and thicknesses.
CONTACT US

Features

  • Can be Customized to different size and shape
  • Not harmful to the environment
  • Disposable
  • Suitable for a low-current device
  • Flexible and thin

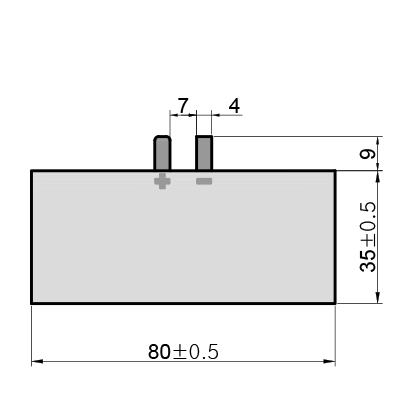

dimensions

specification

Battery system

Zn / MnO2 (Primary)

Nominal voltage

3.0V

Nominal Capacity

18mAh @ C/40 (0.45mA)

Discharge end voltage

1.6V

Max. continuous discharge current

C/10 (1.8mA)

Operating temperature range

-20~60℃

Storage temperature
0℃ ~ 30℃ (recommended)
Self discharge rate
Under 30% for 2 years
Dimension(mm)
W80 X L35 X T0.55
Battery terminals
Carbon
Exterior Casing
Aluminum Laminate / Al pouch

reference

Medical Patch (Disposable)

Cold Chain System (Temp. Tracker)

Body temp. monitor

Wireless Cardiac Monitor

Cosmetic Patch (Disposable)

Semi – Active RFID tag

Smart Card

Wearable Device
