EDLC (Super Capacitor)

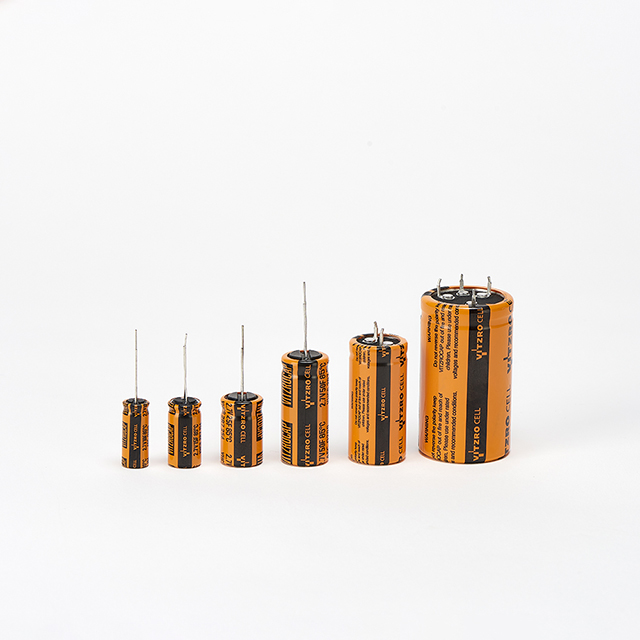

VHCS Single cell

The eco-friendly era,
it all begins with the Energy Storage System.

VITZROCELL's EDLC is a next-generation energy storage device that offers a high energy density and can be used semi-permanently.
CONTACT US

Features

  • Very Low ESR(High-power density)
  • High Operating Temperature
  • RoHS, UL, IATF 16949, AEC Q200(Grade 3) Compliant
  • Cylindrical cell (2.7V 85℃ 3.3F ~ 360F)
  • Radial Lead/ Snap-in terminals

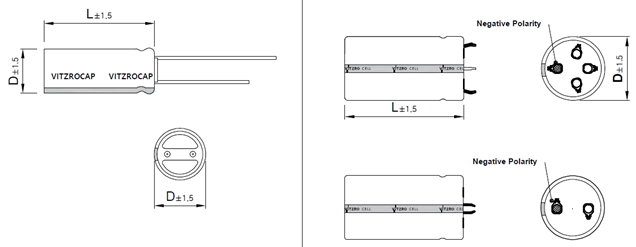

dimensions

specification

Type

Model

Rated

Voltage

(V)

Temperature

(℃)

Capacitance

(F)

Internal

Resistance (mΩ)

Leakage current

(mA, 72hr)

Energy

Density

(Wh/kg)

Size (mm)

AC (1kHz)

DC

D x L

Lead

terminal

VHCS 002R7 335

2.7

-40

to 85

3.3

≤120

≤180

0.01

2.2

8 x 20

VHCS 002R7  505

5.0

≤65

≤100

0.015

2.4

10 x 20

VHCS 002R7 705

7.0

≤50

≤80

0.020

3.0

10 x 20

VHCS 002R7 106(U)

10.0

≤40

≤65

0.030

3.7

10 x 25

VHCS 002R7 156

15.0

≤35

≤55

0.060

3.3

12.5 x 25

VHCS 002R7 256

25.0
≤20
≤30

0.070

3.6

16 x 25

VHCS 002R7 506

50.0

≤13

≤20

0.120

4.2

18 x 40

Snap-in

terminal

VHCS 002R7 107

100.0

≤6.0

≤10

0.30

4.8

22 x 45

VHCS 002R7 367

360.0

≤3.0

≤3.5

1.00

5.3

35 x 62
