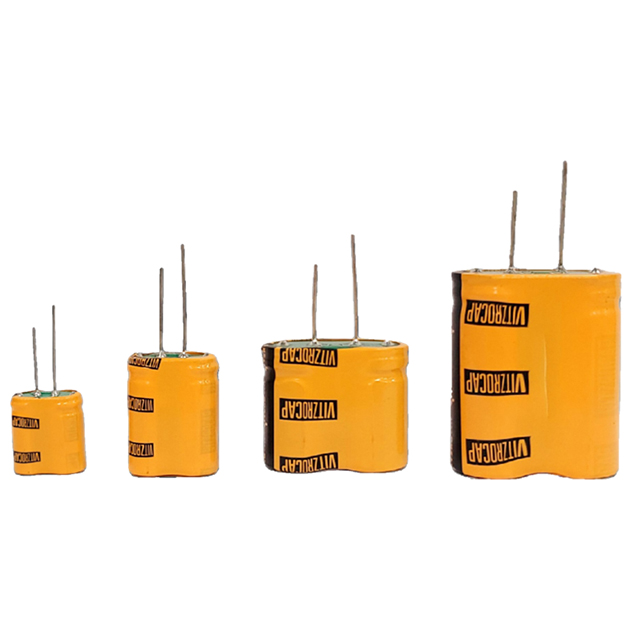

EDLC (Super Capacitor)

VHCM

The eco-friendly era,
it all begins with the Energy Storage System.

VITZROCELL's EDLC is a next-generation energy storage device that offers a high energy density and can be used semi-permanently.
CONTACT US

Features

  • Very Low ESR(High-power density)
  • High Operating Temperature
  • RoHS, UL, IATF 16949, AEC Q200(Grade 3) Compliant
  • Cylindrical cell (5.0V & 5.4V 85℃ 1.5F ~ 7.5F)
  • Radial Lead terminals

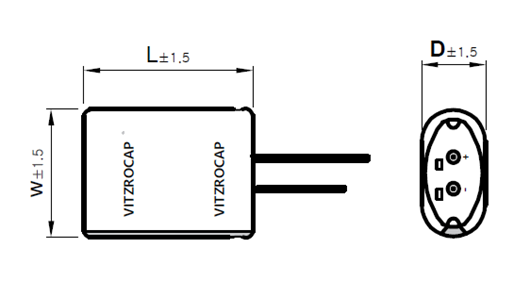

dimensions

specification

Type

Model

Rated

Voltage

(V)

Temperature

(℃)

Capacitance

(F)

Internal

Resistance (mΩ)

Leakage current

(mA, 72hr)

Energy

Density

(Wh/kg)

Size (mm)

AC (1kHz)

DC

D x L

Passive

VHCM 005R4 155

5.4

-40 to 85

1.5

≤125

≤245

0.010

1.9

8.5 x 21.5 x17.0

VHCM 005R4 255

2.5

≤85

≤165

0.015

2.2

10.5 x 21.5 x21.0

VHCM 005R4 355

3.5

≤85

≤145

0.021

3.0

10.5 x 21.5 x21.0

VHCM 005R4 505 (U)

5.0

≤65

≤125

0.030

3.4

10.5 x 28.0 x21.0

VHCM 005R4 755

7.5

≤65

≤95

0.040

3.0

13.0 x 28.0 x 26.5


Active



VHCM 005R0 155(A)

5.0

-40 to 85

1.5

≤125

≤245

0.010

1.6

8.5 x 21.5 x17.0

VHCM 005R0 255(A)

2.5

≤85

≤165

0.015

1.9

10.5 x 21.5 x21.0

VHCM 005R0 355(A)

3.5

≤85

≤145

0.021

2.5

10.5 x 21.5 x21.0

VHCM 005R0 505 (UA)

5.0

≤65

≤125

0.030

2.9

10.5 x 28.0 x21.0

VHCM 005R0 755(A)

7.5

≤65

≤95

0.040

2.5

13.0 x 28.0 x 26.5
